Spraying Drones [Professional]



Introduction

Unmanned aerial vehicle (UAV) variable-rate spraying technology, as the development direction of aviation for plant protection in the future, has been developed rapidly in recent years. In the actual agricultural production, the severity of plant diseases and insect pests varies in different locations. In order to reduce the waste of pesticides, pesticides should be applied according to the severity of pests, insects and weeds[1].

The application of pesticides and fertilizers in agricultural areas is of crucial importance for crop yields. The use of aircrafts is becoming increasingly common in carrying out this task mainly because of their speed and effectiveness in the spraying operation.[2]



Related Smart Farming Products

DJI MG-1P Spraying Drone[4]

Yamaha RMAX[5]

The Yamaha RMAX is the high performance standard in remotely-piloted helicopters designed for agriculture purposes.

Related Scientific Papers

Develop an unmanned aerial vehicle based automatic aerial spraying system[3]

A spraying drone was used to perform aerial spraying in a field using a ground control station. Before spraying, GPS waypoint and spraying control point information were sent to the ground station through the upstream port of the route planning system. After the UAV received the program-controlled instructions sent to data link by the ground station, it followed the predetermined route automatically. During the process of spraying, the UAV controlled the aircraft according to the predetermined GPS coordinates and sent a separate spraying control signal to the spray system. The spray system received the spraying control signal which started and stopped the work with feedback of the real-time status of the spray system to the host computer. The host computer returned the real-time GPS information and the status information of the spray system during flight back to the ground station via telemetry channels.

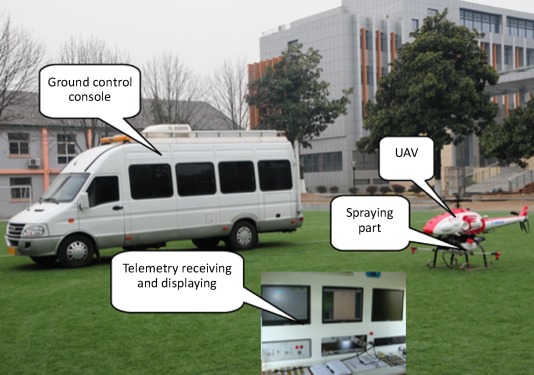

Figure 1. The spraying drone system and the Ground Control structure diagram[3]
Design and Experiment of a Variable Spray System for Unmanned Aerial Vehicles Based on PID and PWM Control[1]
A spraying drone was used to perform automated spraying in a field based on flight plan and a prescription map, achieving rapid and accurate change of spraying rate.

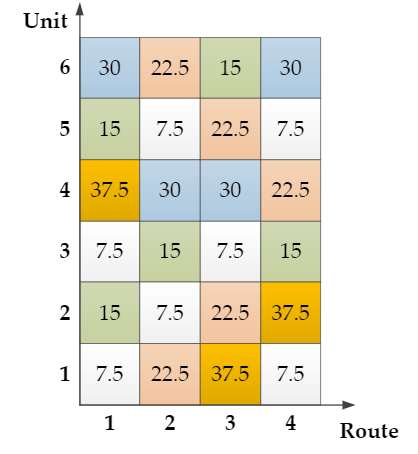

Figure 2. Prescription map for the spraying application[1]

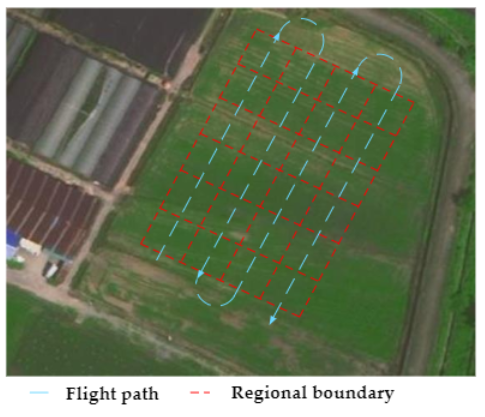

Figure 3. The flight plan for the spraying[1]


References

[1] Design and Experiment of a Variable Spray System for Unmanned Aerial Vehicles Based on PID and PWM Control

[2] The use of unmanned aerial vehicles and wireless sensor networks for spraying pesticides

[3] Develop an unmanned aerial vehicle based automatic aerial spraying system

[4] DJI AGRAS MG-1P SERIES

[5] Yamaha RMAX
