Introduction

Population increase and the improvement of living standards brought about by development will result in a sharp increase in food demand during the next decades. At the same time, water inputs will have to be reduced in response to water scarcity and environmental concerns. Water productivity is projected to increase through gains in crop yield and reductions in irrigation water. In order to meet these projections, irrigation systems will have to be modernized and optimized.^[1] Best management practices need to be adopted, while precision agriculture can provide the right tools and techniques for optimized water use. Meteorological conditions’ monitoring, soil moisture sensing and automated systems for irrigation can bring the desirable results.

Related Smart Farming Technology Products

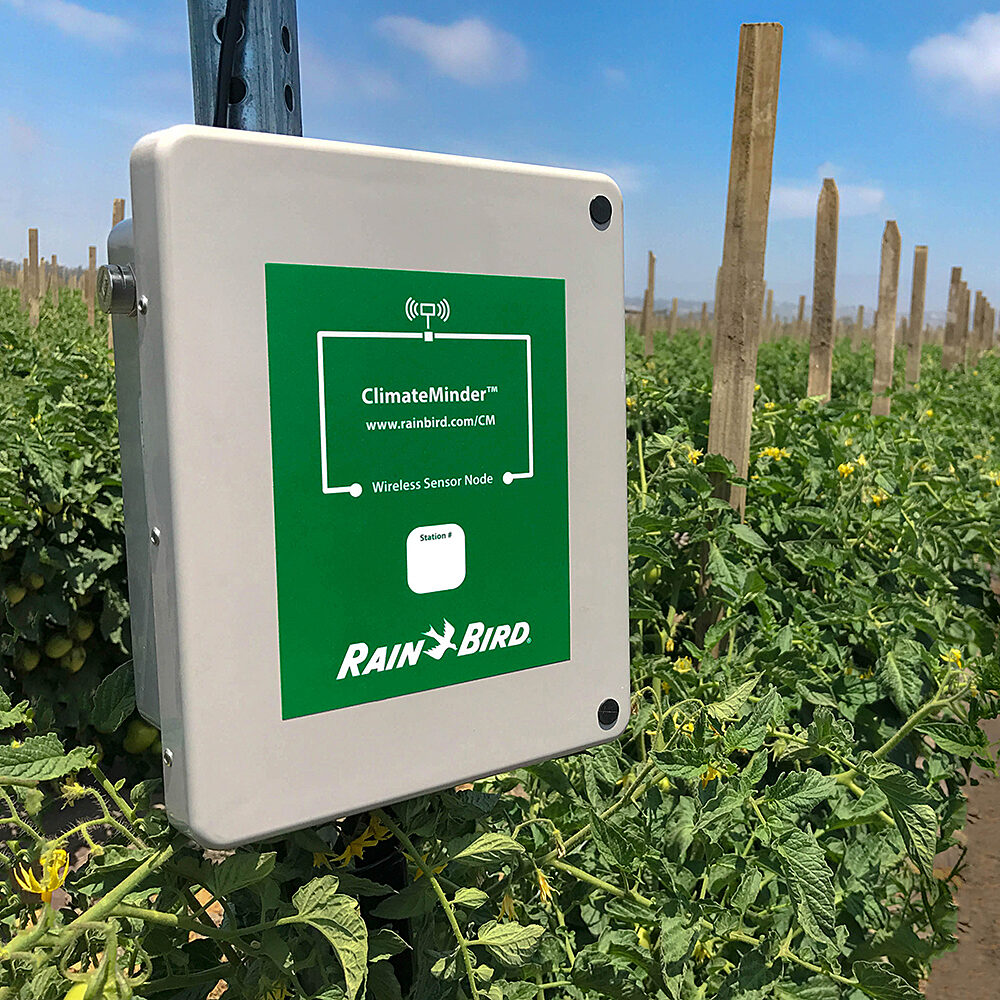

1. ClimateMinder Soil Monitoring^[2]

Easy to Use and Well Supported

Simple to use clean interface answers the question growers need to know:

Did the system run last night? Was it off or a had a problem?
Irrigate enough? Too much?
Is fertilizer leaching? Did it penetrate all the way?

System to Grow With

Start with one unit and add more as fields grow and expand. All the data is collected and presented in the same easy-to-read interface.

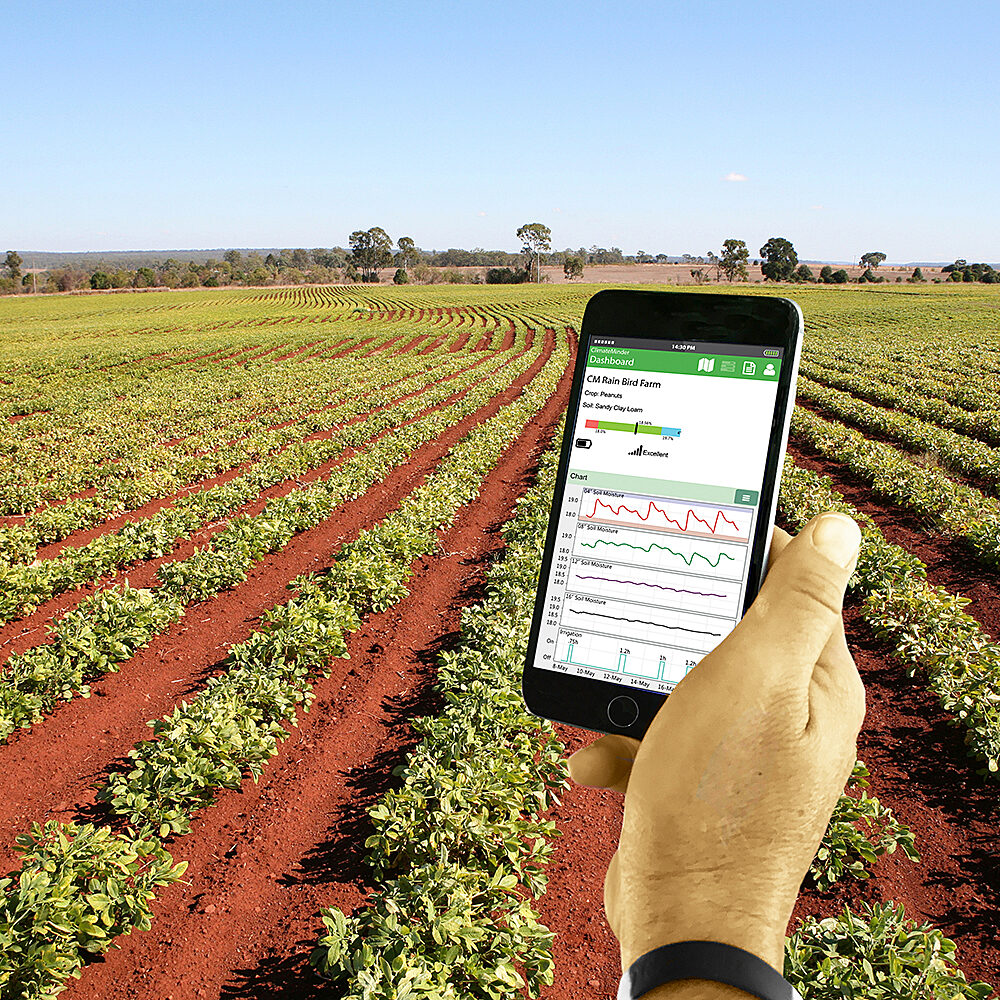

The following images shows ClimateMinder Soil Monitoring with App:

Precision™ Soil Sensor:^[4]

greenhouse_monitoring — Figure 2: Monitoring inside of greenhouse.^[5]

2. SmartRain App

The SmartRain App gives the possibility to control machines from any location. Get an overview with actual status information such as remaining irrigation time, remaining PE-pipe to pull back in, time to change the irrigation strip and more.

Which area needs to be irrigated next? Which irrigator will be finished next? Optimize the application rate depending on the soil moisture and weather conditions.

User will get an Error message via SMS on phone if the irrigator has stopped because of any malfunction or if it comes into a danger area.

Pivot, Rainstar and pumps can be operated directly through Smartphone or Tablet.

Manage teams, operators or contractors who are working with machines.Create reports for water usage, soil conditions for internal use or business purposes fully automatically.

Bauer SmartRain irrigator app 03-c-Bauer — Figure 4: The Bauer SmartRain remote irrigator display provides a quick view of the status of multiple reel or pivot irrigators.^[6]

All of this information and functions are available through “SmartRain” App on Smartphone or Tablet. For the use of “SmartRain” user needs the following components:

■ Solar powered GPS controller directly on the sprinkler cart or Pivot control unit PRO-G directly on the central tower

■ Access to “SmartRain” internet platform with personal login

■ Smartphone-App for fast and easy access from any location.

Bauer SmartRain irrigator app 02-Bauer — Figure 5: Alerts can be set up to highlight when an irrigation session is complete – with an advance message alerting operators to a reel irrigator run nearing completion so a move can be organised.^[7]

Reduce the downtime of Rainstars through optimized irrigation scheduling based on actual status information and calculations. Through the App on Smartphone user have an actual overview of all irrigation equipment any time anywhere. SmartRain sends a SMS when irrigator is finished or if there is any Error.

Based on measurements and information about soil conditions, soil moisture, size and shape of different fields, actual usage of different machines and much more, user can continually optimize irrigation management and to reduce costs.

Documentation Reports for water use of different wells or ditches for authorities. All data will be saved automatically and can be printed out at any time.^[6]

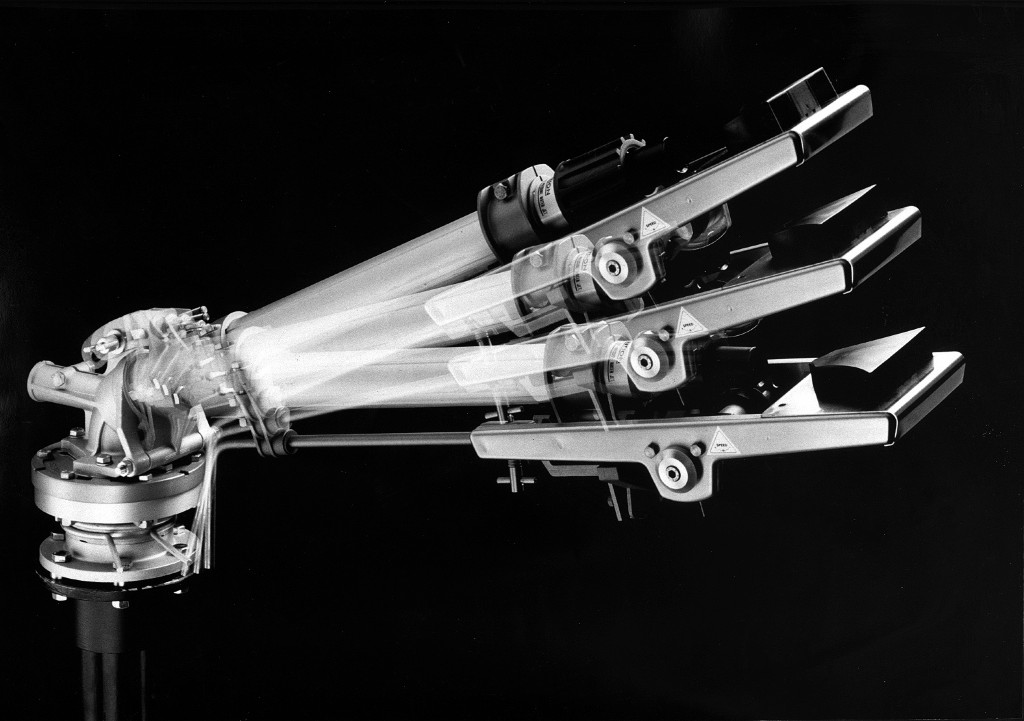

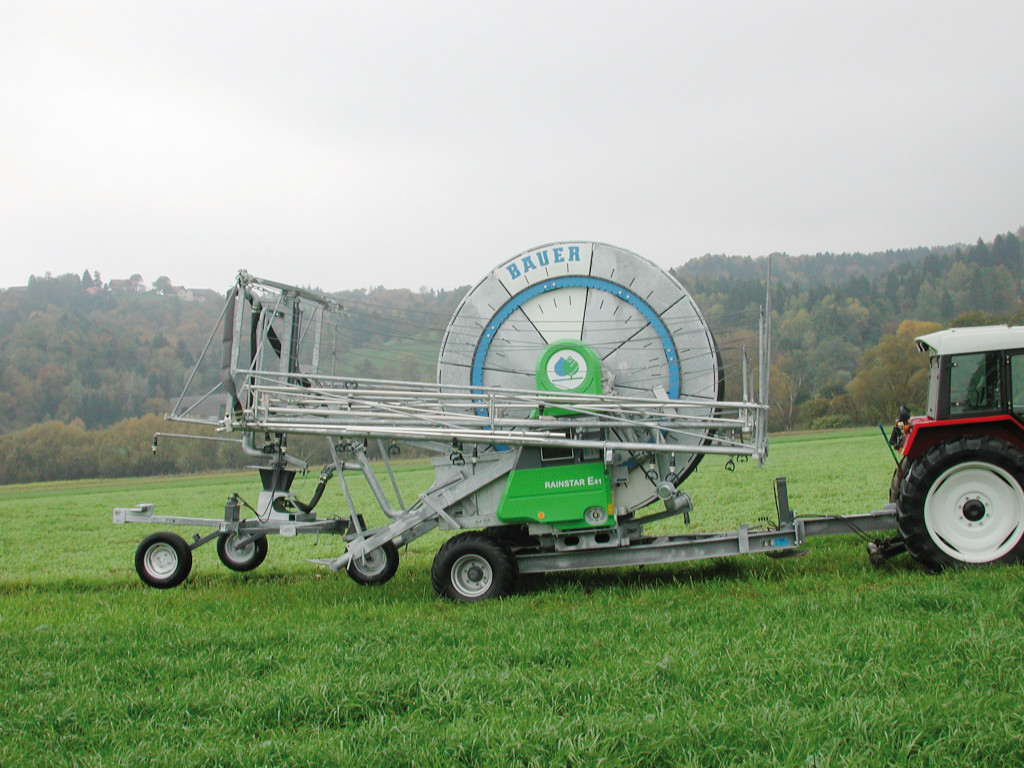

Figure 1:VARI-ANGLE effective irrigation.	Figure 2 Compact transport unit	Figure 3: Smart Rain.

3. TERRAPRO

TERRAPRO provides specialized technical advisory services for the efficient use of water and sustainability of agricultural enterprises:

Reduction of irrigation costs
Reduction of fertilization costs by improving understanding of the relationship between soils, plants (their productive potential) and the most effective fertilization
Greater efficiency of all factors of production
Monitoring, analysis and quantifications based on aerial imaging
Increased productivity and product quality

sondas de humedad del suelo — Figure 6: Soil moisture probes.

With a proven increase of 30% in irrigation efficiency, irrigation management services allow the farmer to decide in a more sustainable way on when to water, how much water to apply and quantify the efficiency of irrigation in crops.

No need to purchase probes
No worries with technical and equipment maintenance
Online access and in real time to the data of the probes
Specialized technical monitoring in continuous – uSENS software
Irrigation recommendations according to the objectives of agricultural production

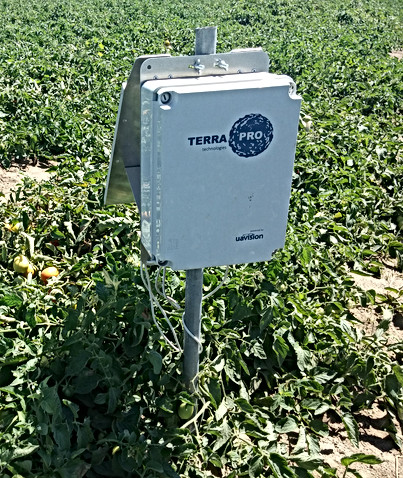

gestíon del riego — Figure 7: Irrigation management.

THE SERVICE INCLUDES:

Initial visit of a technician to the field
Installation, maintenance and uninstallation of equipment
Monitoring of soil moisture content
Monitoring of irrigation applied
Meteorological monitoring
Data available permanently and real time in the software online – uSENS
Data transmission service (GSM cards)
Customized technical follow-up by a TERRAPRO technician
Monthly visits to the field, throughout the campaign
Issuance of weekly reports: including weather forecasts
Field observations, sensor registration and irrigation recommendations for the following 8 days
Final report of the agricultural campaign

APPLICATION:

Support for decision-making in the organization of plots, planting of crops and implementation of the irrigation and fertilization system
Identification of critical areas to perform sampling or definition of soil moisture monitoring sites
Produce comparative maps of support for management, for example, in the comparison of expected / obtained productivity or between campaigns.
Relevant information for differential irrigation calculations (VRI pivot, irrigation sectors)

SERVICE INCLUDES:

Field data collection
Processing of information georeferencing
Technical report with the elaboration of the CEa Classified Map of the soil
Meeting with client for critical discussion of results and support for decision

MAPPING OF THE APPARENT ELECTRICAL CONDUCTIVITY OF THE SOIL

The Apparent Electrical Conductivity of the soil (CEa) represents the capacity of the soil to conduct the electric current and allows to evaluate, in addition to the physical properties of the soil, the availability in water and nutrients.

terrapro - mapa ndvi — Figure 8: NDVI Map.

APPLICATIONS

Monitoring of growth and vegetative vigor of the plant Optimization of irrigation and fertilization
Optimization of the application of pesticides and herbicides
Selective harvest
Estimates relative to production

THE SERVICE INCLUDES:

Digital Aerial Photography
Georeferencing and orthorectification of multispectral images
Treatment of the NDVI and classification map
Critical analysis in compliance with other monitoring systems TERRAPRO (when applicable)
Technical report with NDVI classification
Technical meeting with the client for critical discussion around the results and support for decision making^[8]

Find out more about TERRAPRO technologies:

4. Vaisala hydrometeorological stations

Due to the growth of population throughout the world, there is pressure to improve methods and practices of agriculture in order to increase crop yields. The main concern of productive agriculture is related to the effective and efficient supply of water that is easily available for crop fields. The major uncertainty with the water supply is associated with unevenly distributed precipitation and with the impacts of climate change on water availability.
Faulty irrigation scheduling will lead to waste of water. Therefore it is crucial to know how much water there is and how much water will be available for irrigation.

Vaisala hydro meteorological stations are used to monitor the amount of precipitation and to measure water levels in reservoirs to provide real-time information on availability of water for irrigation. In addition, Vaisala systems calculate directly evapotranspiration thus providing an indication about the amount of water needed for the plants.

Automatic Weather Station AWS310

A complete communication and data monitoring solution, including sensor, electronics, mast, and power supply – everything you need to start collecting accurate and reliable weather measurements

Features:

WMO-compliant sensors for validated data
Easy remote monitoring of network status via optional NM10 software
Remote configuration management
Long calibration intervals
Fast delivery for preconfigured systems

Figure 9: Vaisala Automatic Weather Station AWS310.

Key Benefits:

Reliable and trusted
Proven performance not only through extensive testing in development, but across over 20,000 field installations worldwide
Lower operational costs
Long calibration periods and remote configuration management mean greater efficiency – saving you time, money, and field visits
Multiple configurations
Commonly requested options are preconfigured, but the AWS310 is fully customizable to your specific application

HydroMet™ Automatic Weather Station MAWS201

The Vaisala HydroMet™ Automatic Weather Station MAWS201 is a portable AWS for temporary installations, featuring the same design as the Vaisala TacMet Tactical Meteorological Observation System MAWS201M for demanding tactical meteorological applications. Its lightweight aluminium tripod and easy-to-use connectors make it fast to set up. Each leg is adjustable for use on uneven terrain.

Key Benefits:

Field-proven in a wide range of applications
Including but not limited to:
• Meteorological research
• Civil defense
• Environmental impact studies
• Emergency response
• Fire weather
• Waste management

Lightweight, easy-to-transport setup:

With 5 basic sensors, a solar panel and a battery the MAWS201 weighs just 15 kg. It can be transported in two lightweight carry cases made of cellular polypropylene (EPP), a lightweight but very rugged material that provides excellent protection. The cases are equipped with handles, hinges, wheels and latches for padlocks.

Extensive sensor options and outputs:

The basic suite of sensors typically measures wind, pressure, temperature, relative humidity, and precipitation. In addition, measurements can be taken of e.g. multi-level soil temperature, soil moisture, global and net solar radiation, water level, and temperature. Generic and configurable 16 bit A/D conversion is included in case you want to interface your own sensors. In addition to the standard meteorological and statistical calculations, the extended calculation library also includes evapotranspiration, heat index, forest fire index, wind chill and many others.^[9]

5. Toro TFS series flow sensors

The Toro TFS series flow sensors provide reliable flow information to aid in the detection of and response to system issues like piping breaks, while being accurate enough for tracking water usage.^[10]

Features:

Effective Flow Monitoring Even In Flows Less Than 5 GPM Effective in ranges from 1.2 GPM to 500 GPM. Teamed with the Toro TMC-424, ½”, ¾” and 1” sensors provide a cost-effective flow monitoring and alarm system.
Compatible With Competitive Controllers In addition to the TORO compatible controllers – TMC- 424E, TIS-PRO, Sentinel® and SitePro® – these flow sensors work with any controller or control system compatible with frequency output flow sensors.

Compatible with Competitor Controllers PVC tee ﬂ ow sensors from ½” to 4” provide options for ﬂ ow measurement from 1.2 to 500 GPM, making these sensors ideal for residential, commercial, municipal, and sports ﬁeld applications.

RELIABILITY Durable, impeller-based sensor provides accurate ﬂ ow information. Potted design withstands the elements and provides options for valve box mounting or direct burial. PEACE-OF-MIND Coupled with the TMC-424 or one of Toro’s other ﬂ ow sensing control products, the TFS series provides a solution for the detection and isolation of system leaks or piping breaks, preventing washout or other damage.

Specifications:

Flow: 1.2 to 500 gpm (4.5 to 1892.7 lpm)

Dimensions: 1/2″ (1.3 cm), 3/4″ (1.9 cm), 1″ (2.54 cm) , 1.5″ (3.8 cm), 2″ (5.1 cm), 3″ (7.6 cm), & 4″ (10.2 cm)

Pressure Rating: 1/2″ (1.3 cm), 3/4″ & 1″ (1.9 & 2.5 cm): 150 PSI (10.3 BAR); 1 1/2″, 2″, 3″ & 4″(3.8, 5.1, 7.6 & 10.2 cm): 100 PSI (6.9 BAR)

Operating Temperature: Up to 140° F

Related Projects

1. MOSES

The main objective of MOSES is to put in place and demonstrate at the real scale of application an information platform devoted to water procurement and management agencies (e.g. reclamation consortia, irrigation districts, etc.) to facilitate planning of irrigation water resources, with the aim of:
• saving water;
• improving services to farmers;
• reducing monetary and energy costs.

To achieve these goals, the MOSES project combines in an innovative and integrated platform a wide range of data and technological resources: EO data, probabilistic seasonal forecasting and numerical weather prediction, crop water requirement and irrigation modelling and online GIS Decision Support System.
Spatial scales of services range from river basin to sub-district; users access the system depending on their expertise and needs. Main system components are:
1. early-season irrigated crop mapping
2. seasonal weather forecasting and downscaling
3. in-season monitoring of evapotranspiration and water availability
4. seasonal and medium/short term irrigation forecasting

Four Demonstration Areas will be set up in Italy, Spain, Romania and Morocco, plus an Indian organization acting as observer. Different water procurement and distribution scenarios will be considered, collecting data and user needs, interfacing with existing local services and contributing to service definition. Demonstrative and training sessions are foreseen for service exploitation in the Demonstration Areas.
The proposed system is targeting EIP on Water “thematic priorities” related to increasing agriculture water use efficiency, water resource monitoring and flood and drought risk management; it will be compliant to INSPIRE. This SME-led project address to the irrigated agriculture users an integrated and innovative water management solution.^[11]

Figure 12. Context diagram of the MOSES platform.

2. EFFIDRIP

EFFIDRIP is being developed as smart irrigation system that answers future agricultural needs. EFFIDRIP will represent an automatic irrigation scheduler and management support system that permits more efficient use of water, fertilizers and energy in drip irrigated tree crops.

EFFIDRIP is an ICT-based tool for supporting the management and supervision of irrigation and fertigation. In particular, it has been conceived for localized irrigation systems in tree crops although its use could be extended to further scenarios. Its overall objective is to offer a cost-effective tool that provides the end-users (farmers or technicians) effortless irrigation and fertilization management, as well as easy and reliable supervision of the state of the irrigation system. EFFIDRIP aims at relieving farmers from most of the tasks involved in acquiring data, re-scheduling, reprogramming and supervising the application of efficient irrigation.

The EFFIDRIP system complements the functionalities of current irrigation and fertigation control equipment by making them part of a higher level system based on ICT. The role of that high level system is the integration of data and information from multiple sources for their usage in automated scheduling decisions and supervision. It can also facilitate user interaction with the system and communication between people involved in the process. The irrigation controller remains as a key component for the execution of irrigation and fertigation schedules with some autonomy.

What really makes the difference is that those schedules will be updated remotely once a day for each irrigation sector. For each subsequent application, the precise crop water and fertilizer needs will be estimated as a function of weather conditions, the soil and crop water status assessed by sensors, as well as to the productive and environmental goals by the farmer. For this purpose, weather data and sensor measurements are combined in base of state-of-the-art agronomic knowledge. Machine-to-machine communications and design of the application aim to reduce the need for user intervention in operational tasks and instead focus its participation in strategic decisions.^[12]
