Introduction
Many row crop operations such as tillage, planting, spraying, and spreading require that a tractor and implement make multiple, equal-width parallel swaths through the field. To maximize field efficiency and crop yields, operators must drive accurately to avoid excessive overlaps or gaps in field coverage. Traditionally, visual guidance systems such as mechanical and foam markers have been used as operator guidance aids, but they are less effective when it comes to increased machinery working widths, higher field speeds, and extended hours of operation.[1]
Newer systems are available that use differential global positioning system (DGPS) signals to provide field guidance.
Relatively inexpensive navigation aids, known as parallel tracking devices or, more commonly, light bars, are being used by operators to visualize their position with respect to previous passes and to recognize the need to make steering adjustments if a measured geographic position deviates from the desired track.
 |  |
Figure 1: Lightbar operator’s view.[2] | Figure 2: Lightbar installed in tractor cabin.[3] |
Adding Guidance Assistance Systems to an existing farm not only allows the farmer to conduct field operations in a more timely manner reducing yield penalties but also allows him to expand farm size and remain timely with the existing equipment set.
Guided Navigation is easy to use. Anybody can learn to use GPS navigation systems, regardless of computer skills. The systems require only a little practice—typically about 30 minutes.
The necessary parts for the installation of a guidance system are:
- A GNSS receiver usually installed in the centre of the roof of the tractor’s cab
- A display that hosts the guidance computer and all navigation and setting menus
- The lightbar itself, which comes separately, embedded with the display or visually shown in the display
| John Deere Green Star Light bar: | Trimble EZ-Guide 250 Light bar Demo Video: |
During an experiment a planter was used 22.42 hours in the base during the May 17-23 time period, the period when planting operations were completed. When workday expansion and increased equipment time were installed, the planter was used only 17.99 hrs with 300 mm LB a difference of 4.43 hrs, which translates to 19% less labour and machine running time.[4]
Other tests in New Zealand and California showed that top speed could be increased by 13% and even more, and in other cases overlap and skip errors where reduced from 5 to 10% compared to manual driving with foam markers.[5]
Benefits include:
- Reduction in overlap
- Increased speed of field operations
- Workday expansion
- Greater flexibility in hiring labour
- Appropriate placement of inputs.
WORKING PRINCIPLE
GNSS stands for Global Navigation Satellite System, and is the standard generic term for satellite navigation systems that provide autonomous geo-spatial positioning with global coverage and allow small electronic receivers to determine location (longitude, latitude, and altitude/elevation) using time signals transmitted along a line of sight by radio from satellites.
The advantage to having access to multiple satellites is accuracy, redundancy and availability at all times. Though satellite systems don’t often fail, if one fails GNSS receivers can pick up signals from other systems. Also if line of sight is obstructed, having access to multiple satellites is also a benefit. Common GNSS Systems are GPS, GLONASS, Galileo, Beidou and other regional systems.[8]
POSITIONING RECEIVER ACCURACY LEVELS
Sub-meter: Widely used in agriculture and other industries, single-frequency receivers with submeter level accuracy frequently rely on several alternative differential correction services provided by public and private entities. Popular in the past, the Coast Guard differential correction AM radio signal (known more commonly as Beacon) is broadcast through a network of towers located near navigable waters. More recently, Wide Area Augmentation System (WAAS) has been deployed by the Federal Aviation Administration to broadcast a satellite-based differential correction service. A similar service is available through free-of-charge John Deere StarFire 1 (SF1) and subscription-based OmniSTAR Virtual Base Station (VBS) options.
Decimeter: To achieve decimeter level accuracy, dual-frequency receivers can be used with subscription-based correction services, or with a local base DGPS station.
Centimeter: A local base station is also required to implement a Real Time Kinematic (RTK) differential correction service, which provides the ultimate centimeter level of accuracy. In certain locations around the US, local networks of permanent RTK base stations have been established by private entities to provide fee-based coverage of areas with relatively high demand for superior positioning accuracy.[9]
 |  |
Figure 6. GNSS receiver position .[10] | Figure 7. Typical receiver and display wiring diagram.[11] |
Installation Guide videos for common Lightbar systems:
| GNSS Receiver: | Display: | Operation: |
Models available in the market:
Topcon’s X14 entry level controller features a touchscreen and can be upgraded to RTK accuracy and to run its retro-fit auto steering system. The X14 comes as standard with the firm’s SGR-1 receiver, offering 20-30 cm pass-to-pass accuracy, depending on signal strength. The receiver mounts to the tractor’s cab roof, and requires a wiring harness to connect the receiver to the display.
The display hosts all navigation and setting menus, with shortcut buttons around the screen. Four pre-set guidance modes are featured, which allow the system to follow straight A-B lines, repeatable curves, pivot around a centre axis, and Guidelock, which the firm says is suited to odd-shaped fields as it allows you to set straight A-B lines, or follow the contours from headlands. Once in working mode, a light bar is displayed on the screen to indicate position of the next run, and a separate readout indicates distance from the line. X14 costs £1,425 for the display, receiver, wiring harness and in-cab mount.
The new Topcon Agriculture SI-21 Light bar includes an integrated graphic display featuring the swath number, cross track error, speed, area covered, area remaining, and the master switch status — all designed to track performance for improved efficiency. The firm says the bar features a slim design, allowing it to be positioned in the driver’s line of sight, so you do not have to look down at your main-screen to keep on track. LED lights indicate the next contour line and an LCD display is used to indicate distance from the line. Additional SI-21 light bar costs £365.
 |  |  |  |

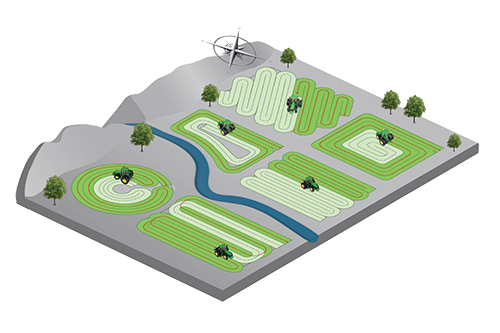

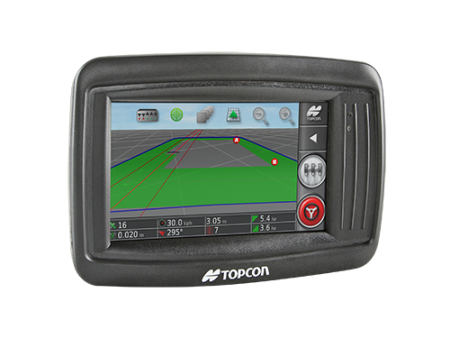

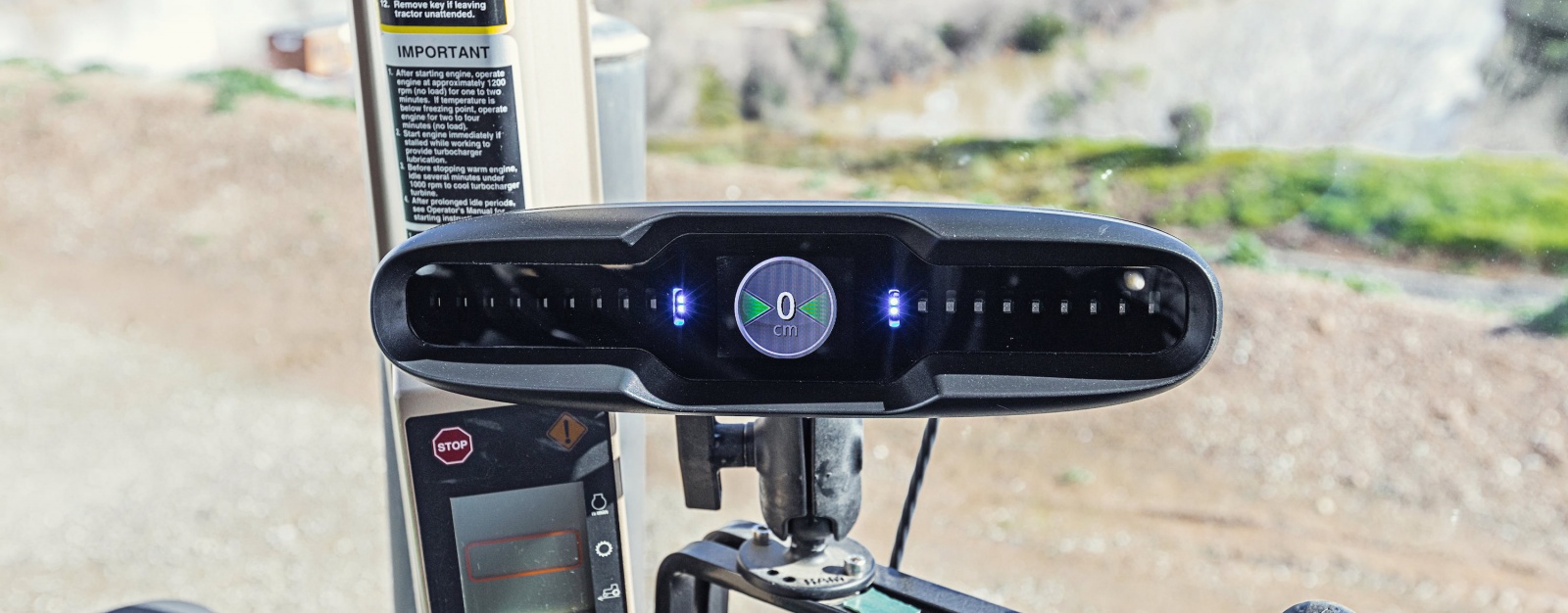

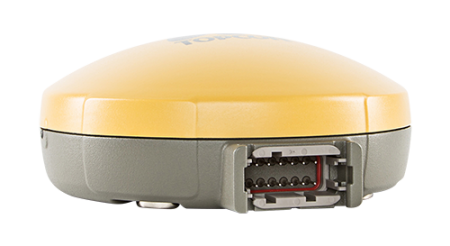

Figure 8: Topcon AGI-4 Receiver/Steering Controller.[12] | Figure 9: Topcon SGR-1 Receiver for Guidance and Autosteering.[13] | Figure 10: Topcon SI-21 Lightbar .[14] | Figure 11: Topcon multiple guidance patterns.[13] |
With Trimble EZ-Guide 250 six guidance paths can be used, including centre pivoting, straight A-B line, identical curves and a freeform function, which allows a headland to be recorded and a number of different A-B lines to be used or identical curves to be used.
As standard the unit comes with a patch antenna, offering sub-metre pass-to-pass accuracy, or the Ag15 antenna is available as an option, offering 15-30cm accuracy, depending on signal quality.
When specified with the Trimble Ag15 antenna, the EZ-Guide 250 costs £1,495 plus VAT (Value Added Tax).
 |  |

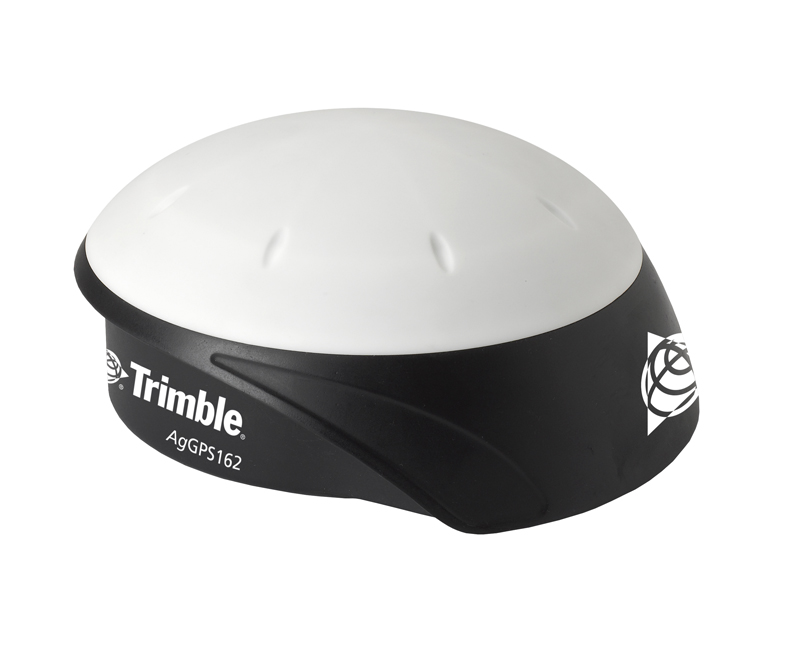

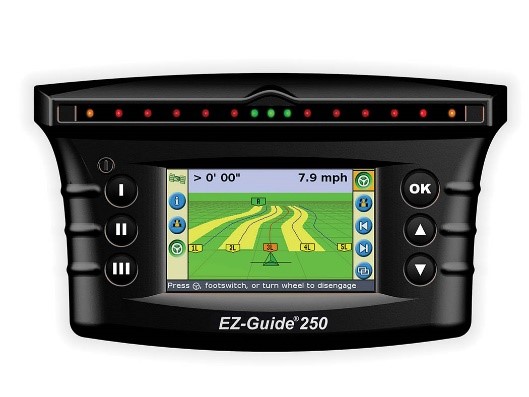

Figure 12: Trimble EZ-Guide 250 System.[15] | Figure 13: Trimble AgGPS 162 GPS receiver.[16] |
More budget GPS Guidance Systems:
https://www.fwi.co.uk/machinery/seven-budget-gps-guidance-systems-test
- Kverneland Isomatch Inline:
https://ien.kverneland.com/iM-FARMING/IsoMatch/IsoMatch-Accessories/IsoMatch-InLine
- Agricision onTrak
Using a combined light bar and receiver, the onTrak device does not require any wires to be installed, and thanks to an on-board battery, no power connections are required either. The waterproof unit is mounted to the tractor’s bonnet via four magnetic pads – a template and magnets are supplied to fit to tractors with plastic bonnets.
The firm says the system is designed to be quick and simple to use, and offers a cost-effective solution for farmers who do not require expensive auto-steering systems, but can benefit from increased accuracy with guidance.
Signals to the receiver are obtained from any freely available satellite, meaning there are no subscription charges, and can provide 20-30 cm pass-to-pass accuracy.
Retail price for the system is £675 plus VAT. If you do not already own an iPad or iPhone, you will have to purchase one, which could take overall price up to the £1,000 mark.
https://www.youtube.com/watch?v=_TrM3opOWdI
https://www.agriland.ie/farming-news/new-affordable-gps-tractor-guidance-system-points-the-way/
- RAVEN Guidance Systems:
https://ravenprecision.com/products/guidance-steering
- Patchwork Blackbox Air
Accuracy: 20 to 30cm (8-12in), Price: From $944+VAT, Subscription fees: None
http://www.patchworkgps.com/blackbox-air
- Machinery Guide
Accuracy: 20 to 30cm or 10 to 20cm depending on receiver,
Prices: $663+VAT for 30 to 40cm accuracy package, Subscription fees: None
http://www.machineryguideapp.com/en
- Sixty-5 Technologies Grass-Guide
Accuracy: 20 to 30cm (8-12in), Price: $2,657+VAT, Subscription fees: None
Related Smart Farming Technology products
The SMART430® supports the ISOBUS Universal Terminal (UT) and Auxiliary Control (AUX-N) – both AEF certified.[17]
Watch how SMART430® works:
—
The AutoTrac™ Universal (ATU) 200 steering kit is a mobile guidance solution that brings additional productivity to farming operations throughout the growing season.
ATU 200 is approved on over 450 different equipment platforms and is compatible with all levels of StarFire accuracy.
The benefits of the ATU 200 over the original ATU include:
- Improved on-track line performance
- Faster line acquisition
- Serviceability
AutoTrac also improves operator comfort as the operator has time to concentrate on implement tasks.[18]
Find out more about AutoTrac Universal:
